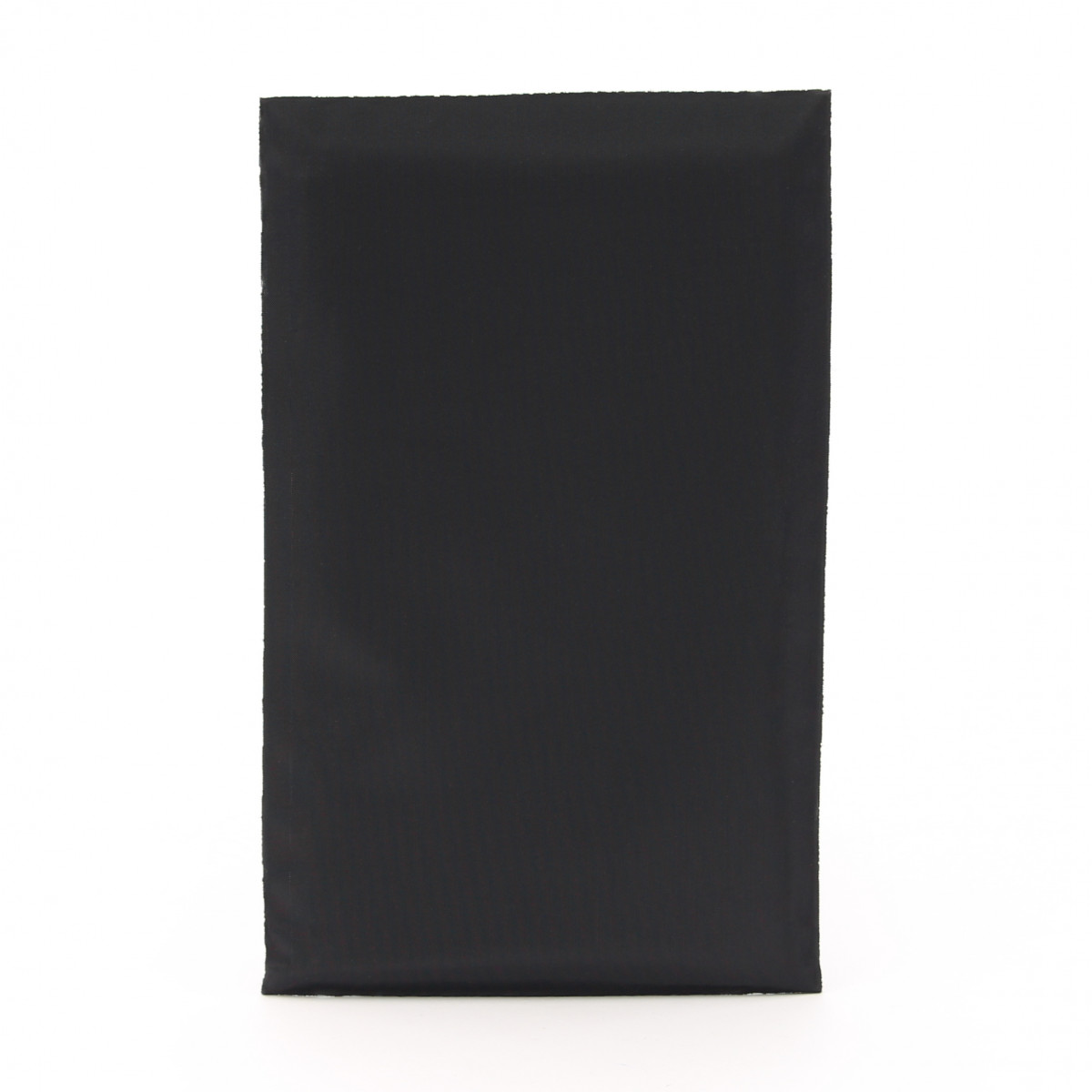

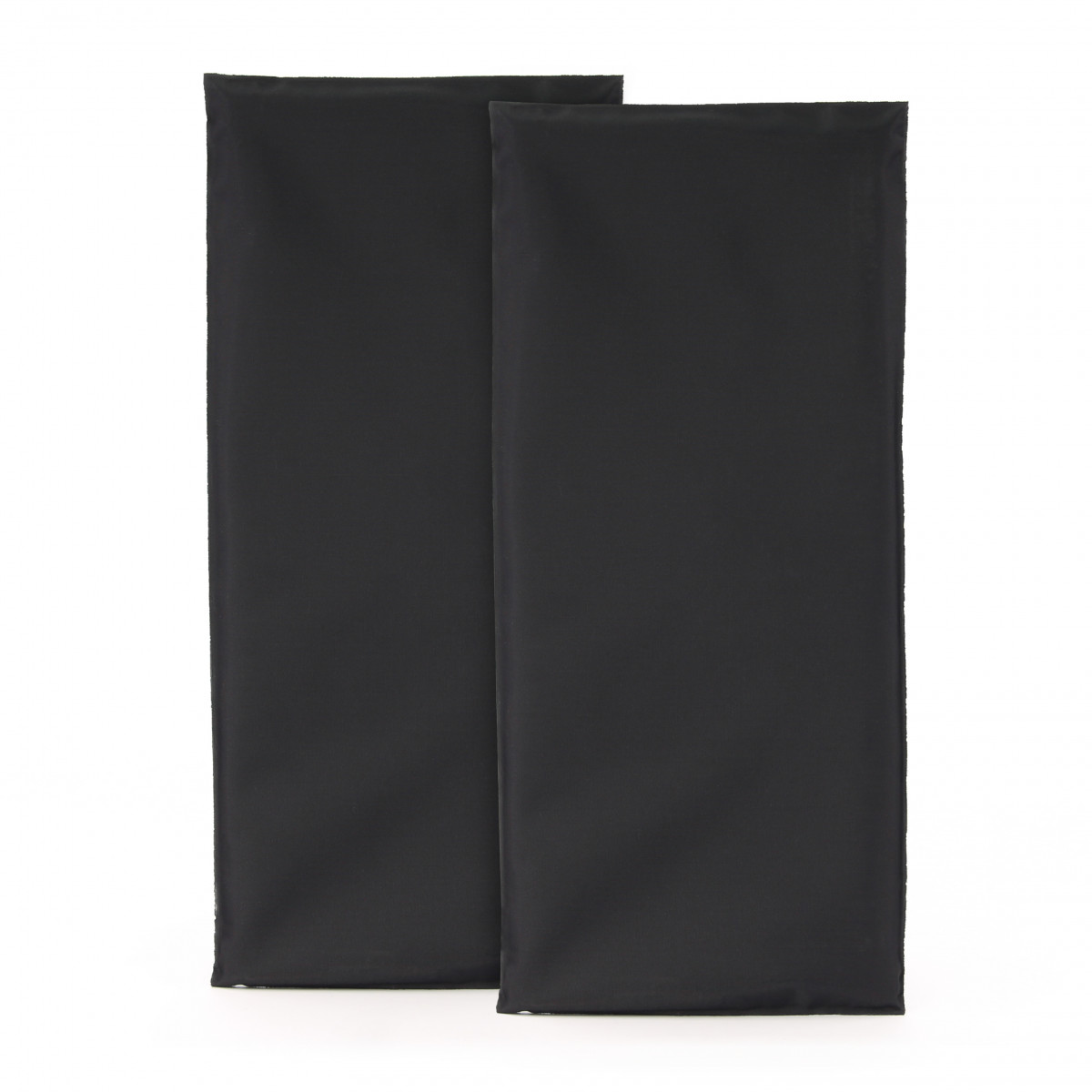

Trauma protection side heavy SET

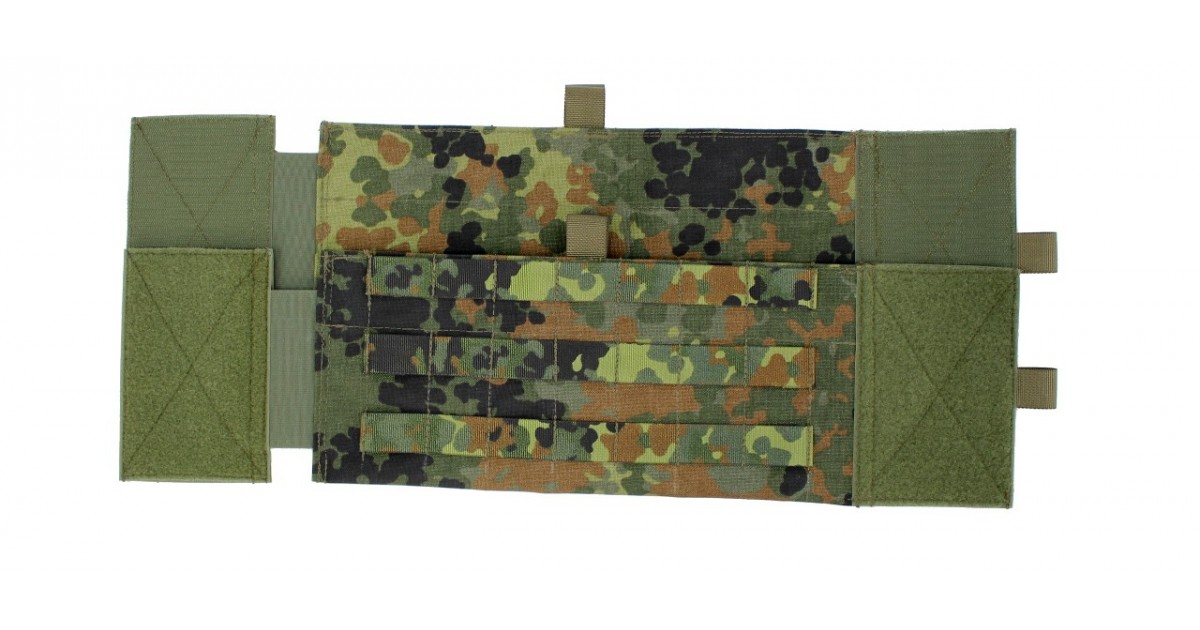

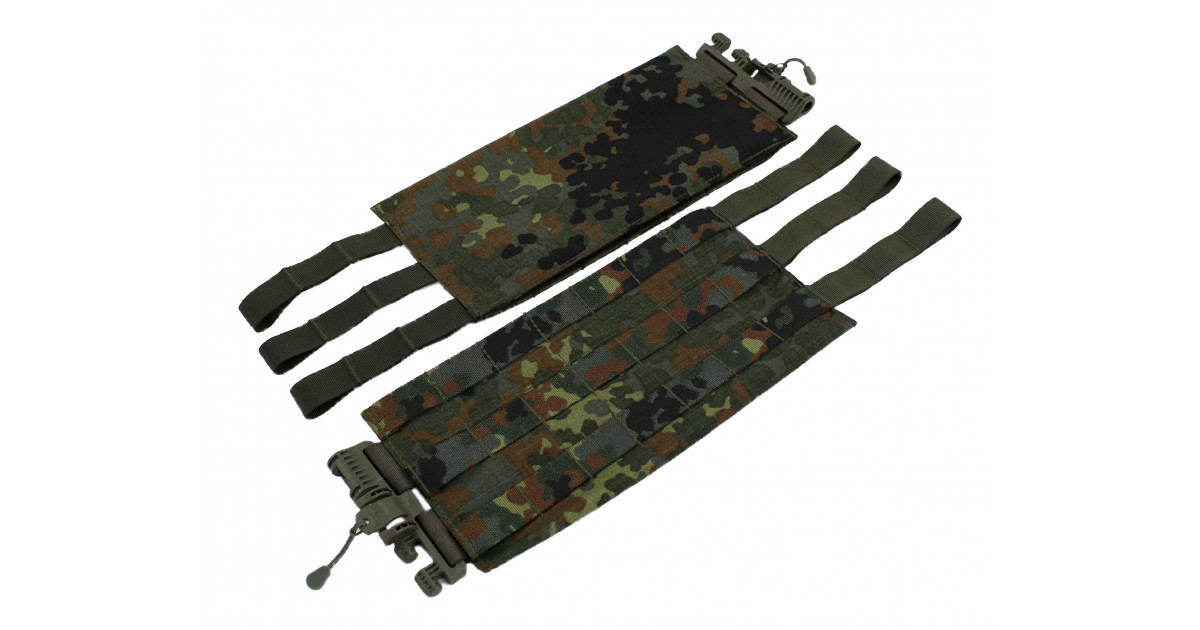

Trauma protection insert heavy for plate carrier cummerbund

The function of this insert is to lower trauma caused by the impact of bullets. Trauma is, in the medical field, a non-life threatening injury, such as bruises and bruises due to the impact of bullets. This insert is to be seen as an extension is for ballistics in plate carriers.

This insert alone does not provide ballistic protection according to the VPAM or SK1. It must always be used in combination with a ballistic insert according to VPAM3 or SK1.

The trauma protection consists of an impact resistant aramid laminate that serves as a shock absorber. The insert is used by the military, police and in personal protection.

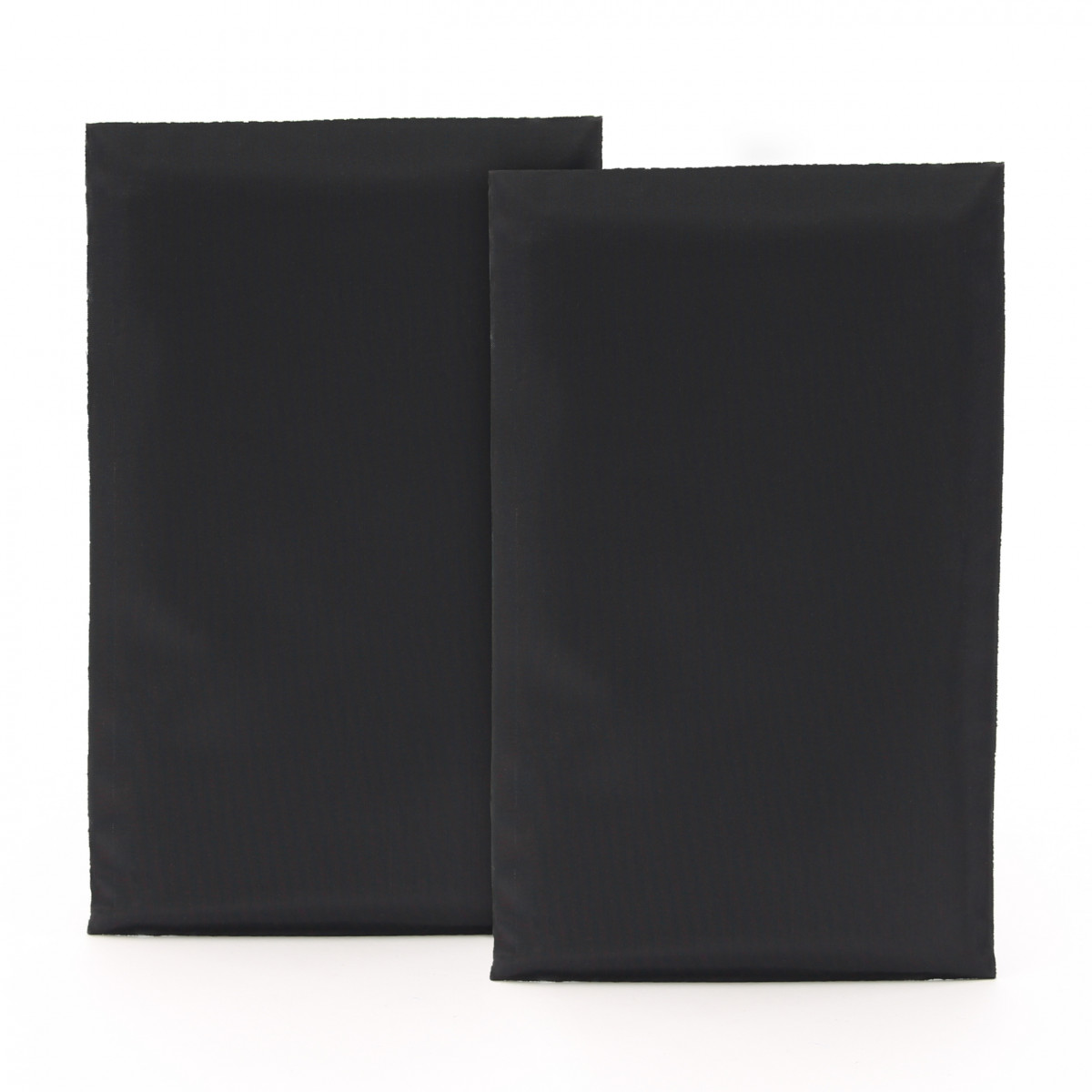

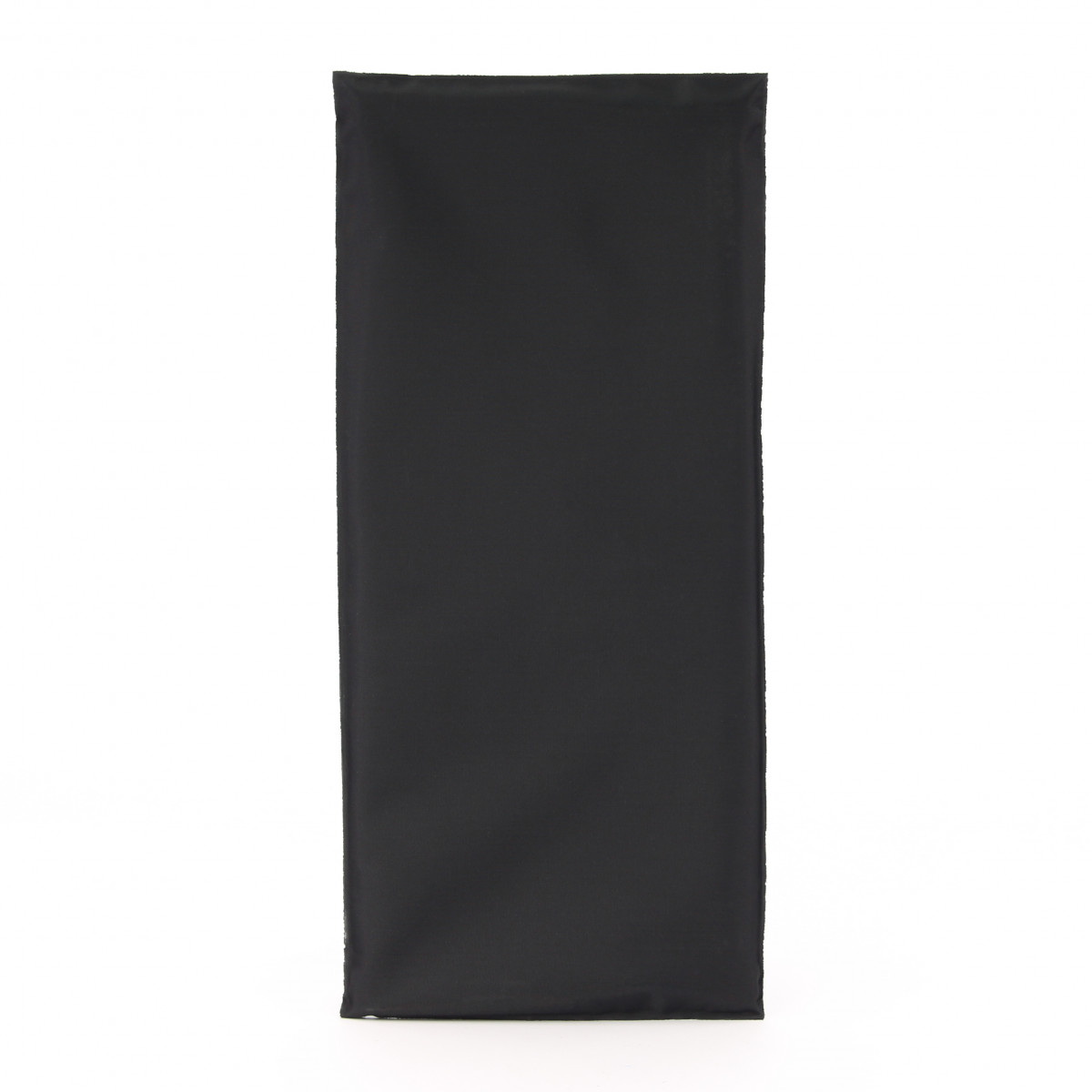

The insert has a thickness of about 8 mm, weighs in size M 54 grams per piece. The square shape is oriented to the common sizes of soft ballistics and is available in sizes M and L.

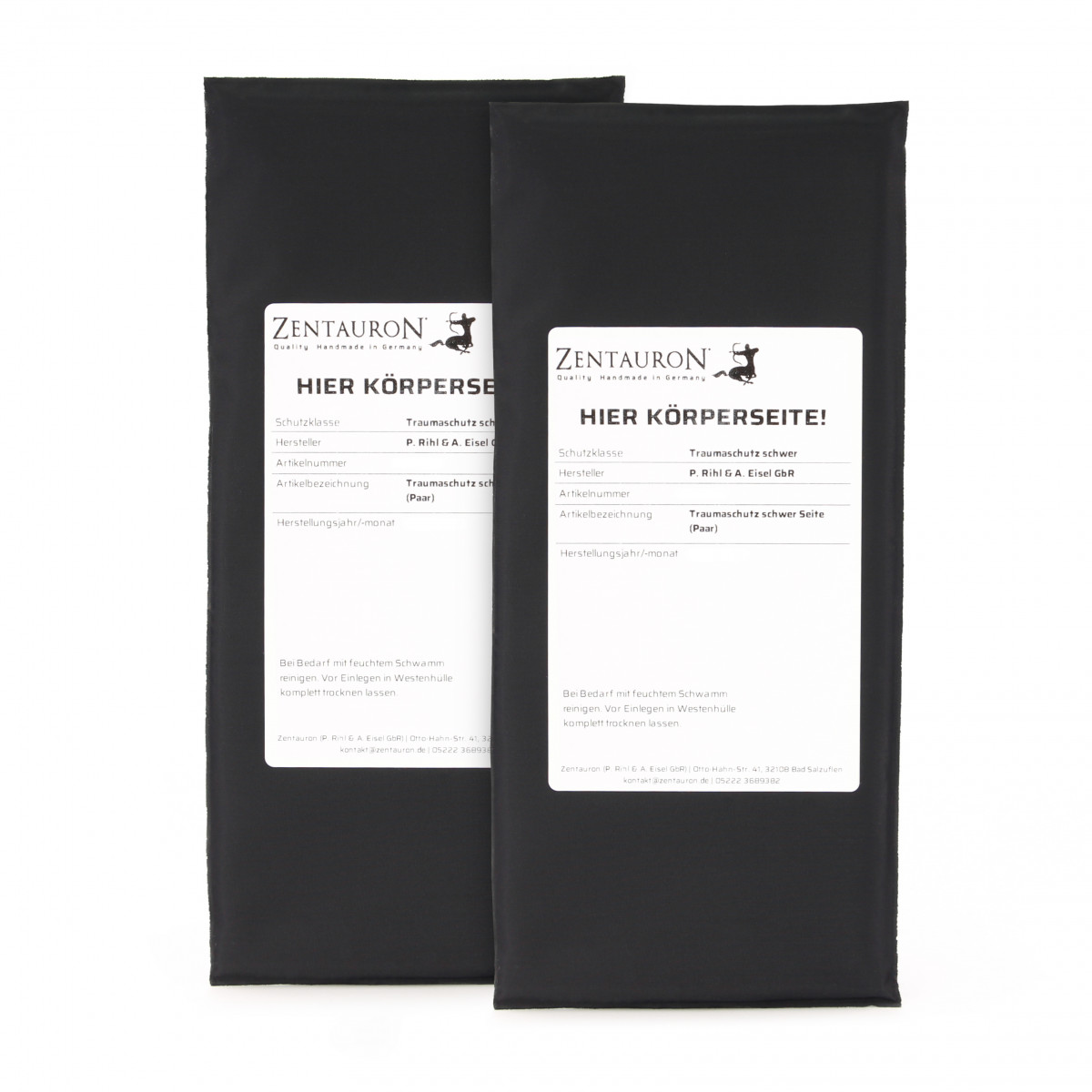

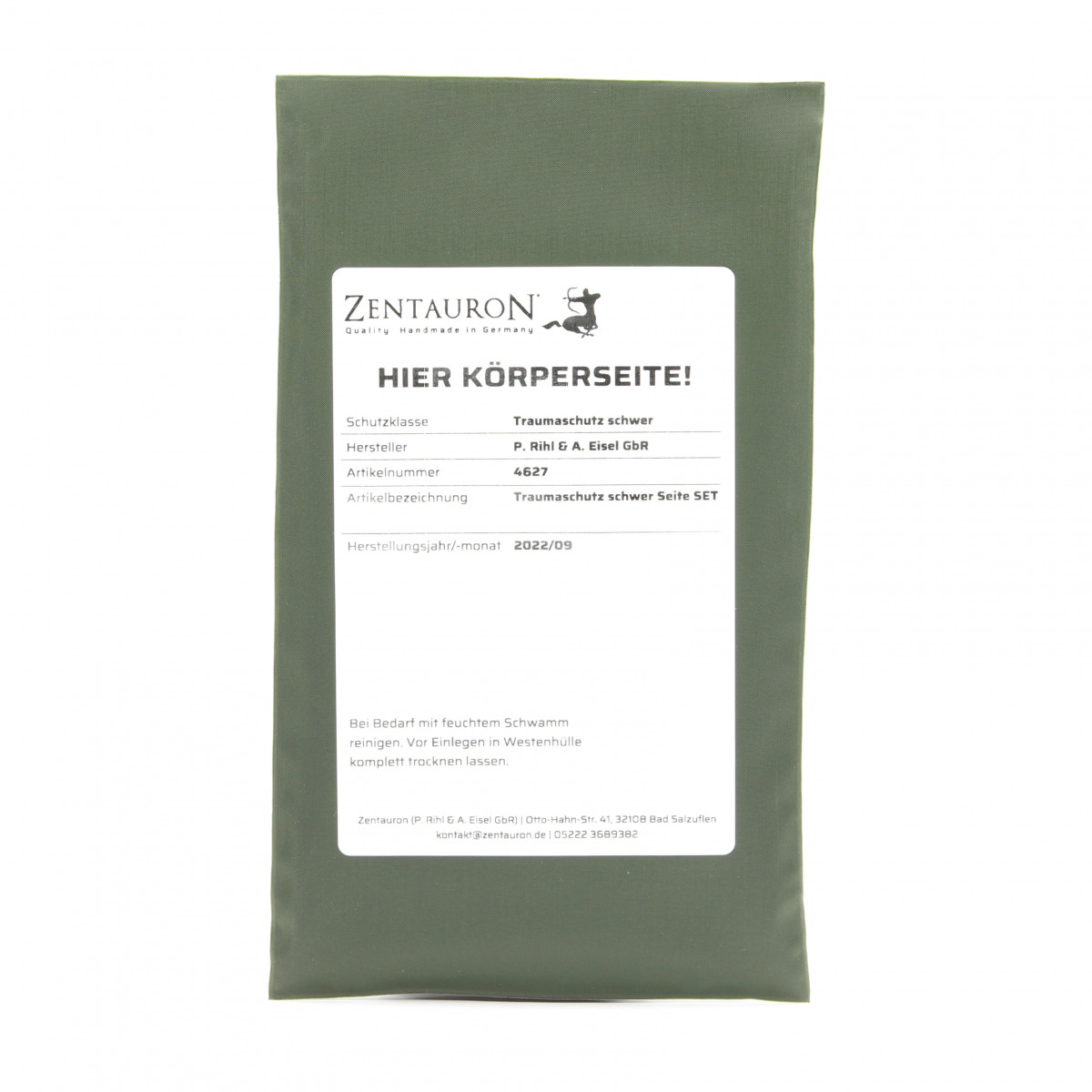

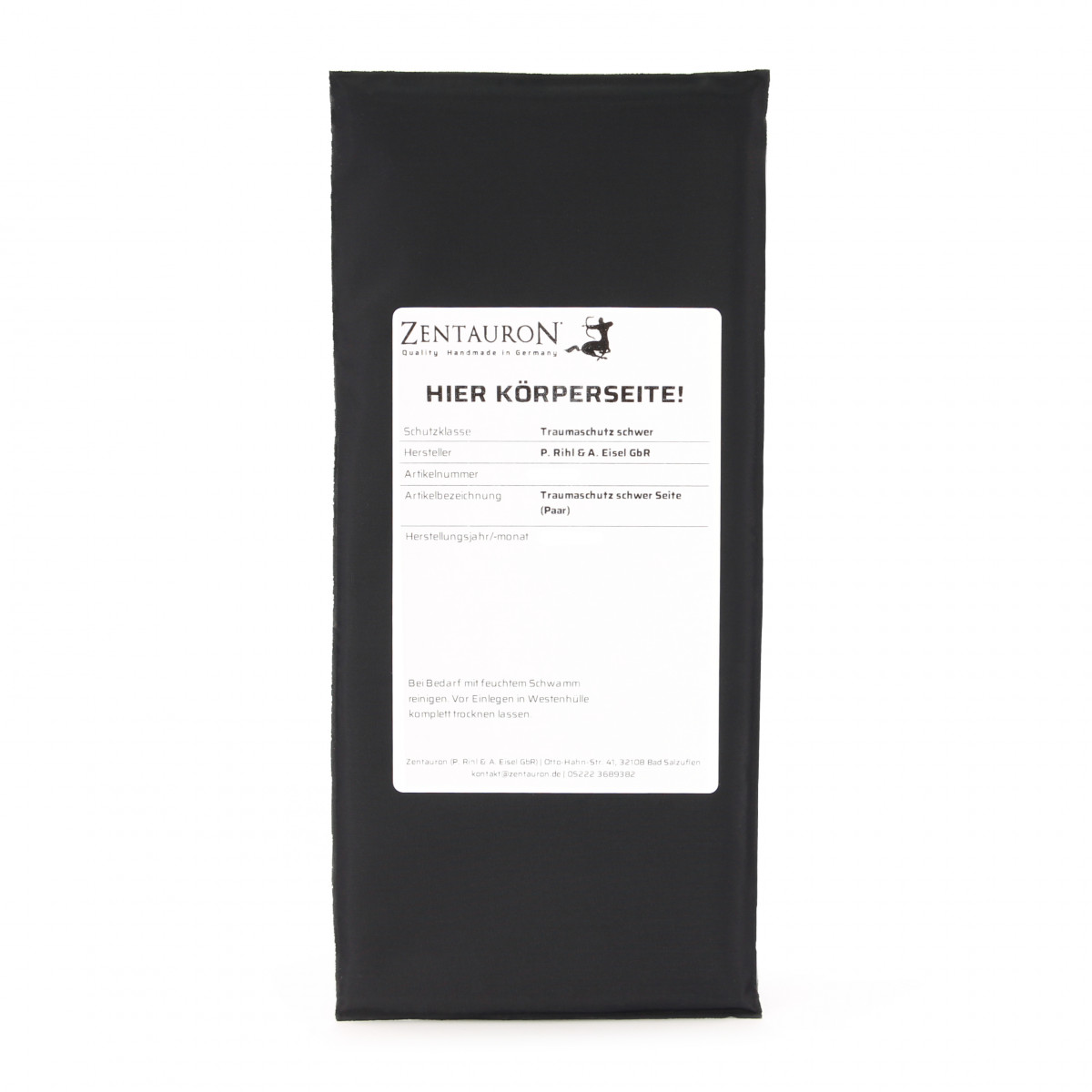

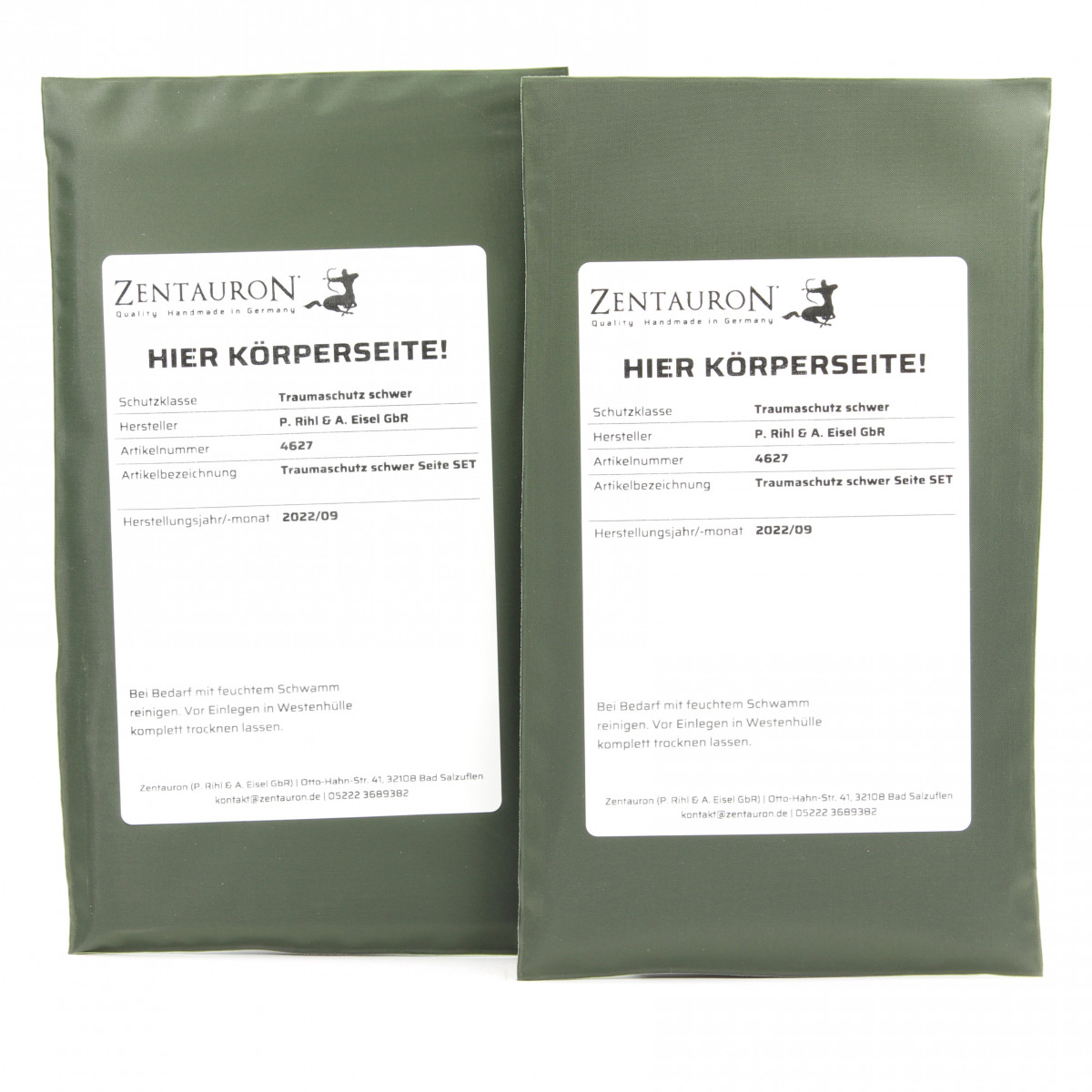

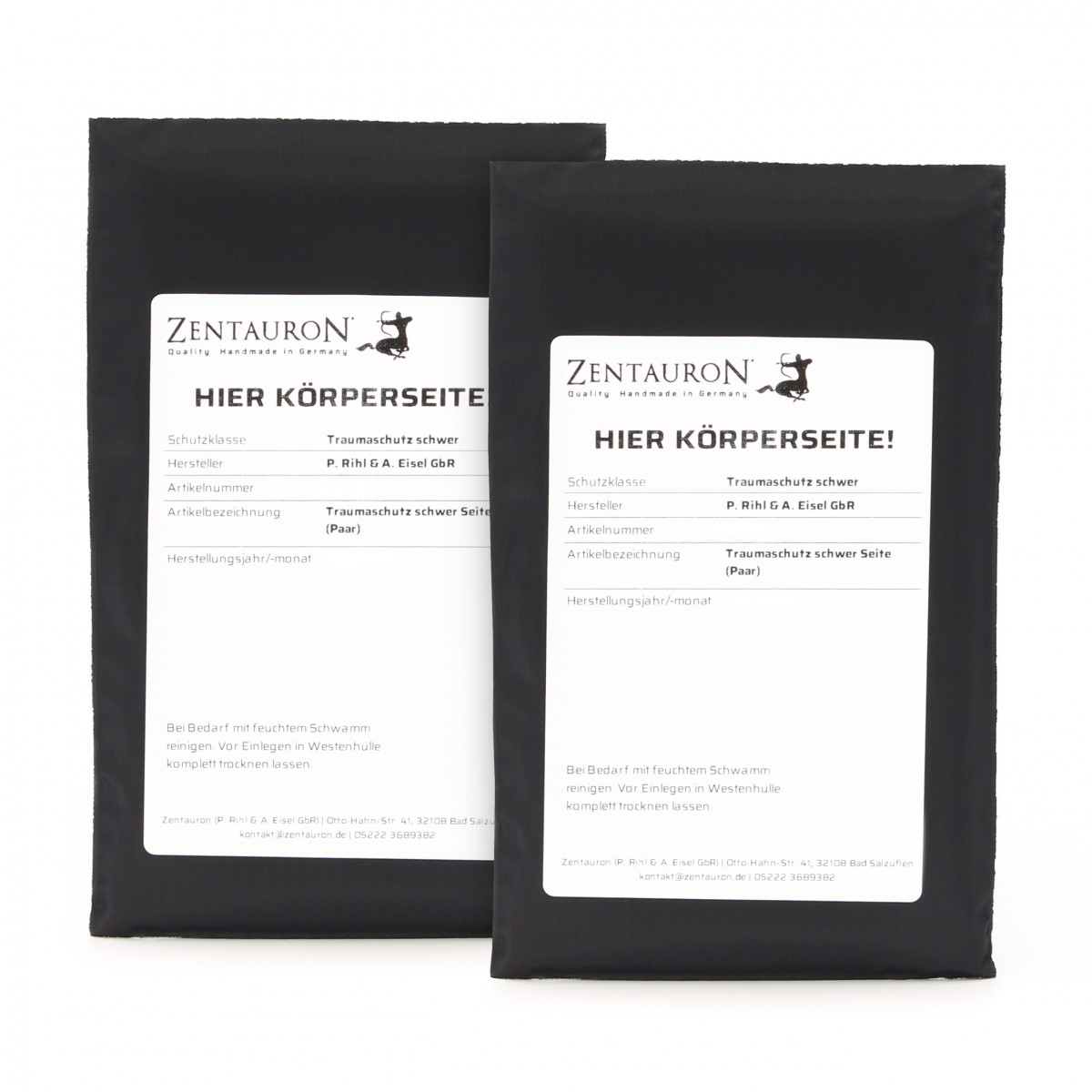

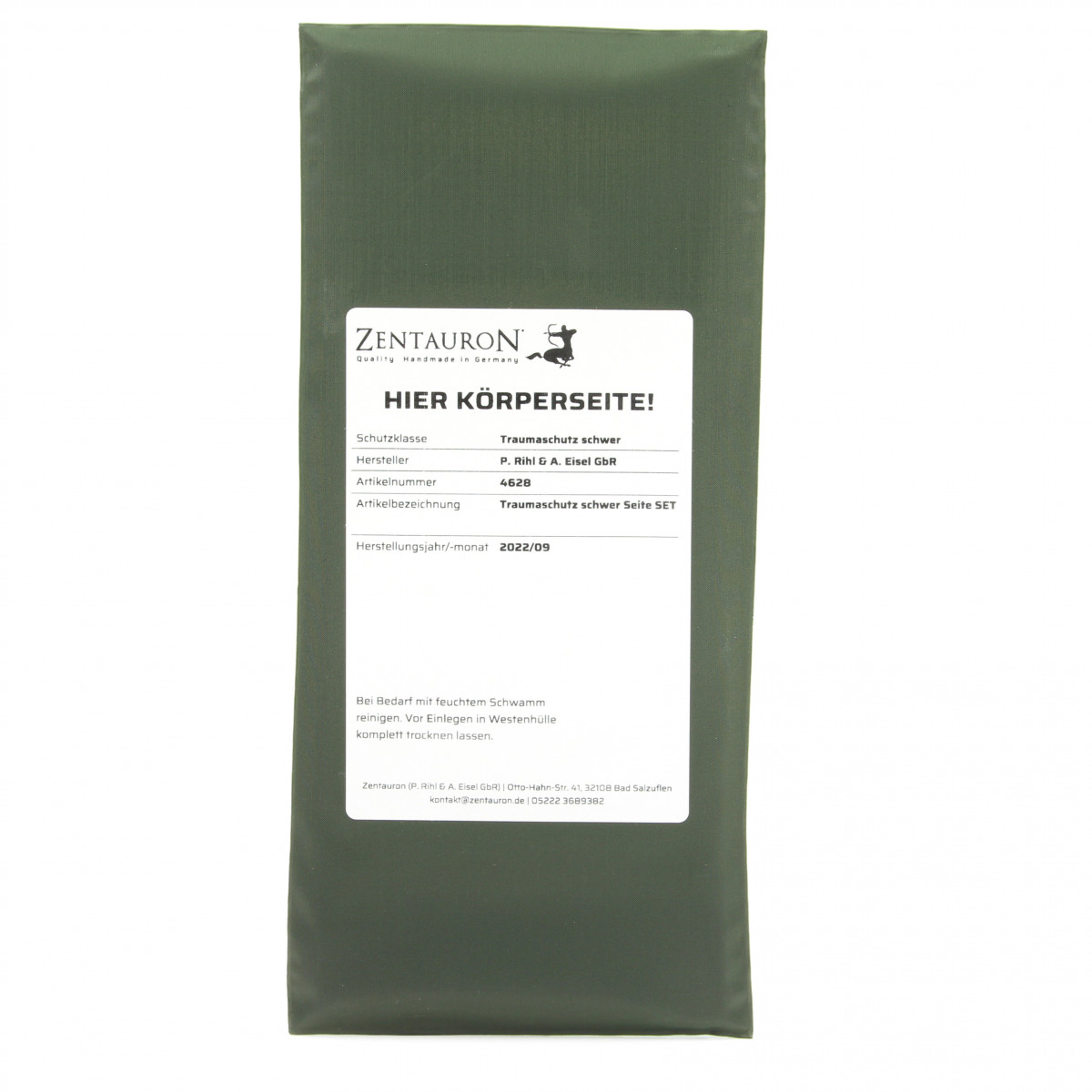

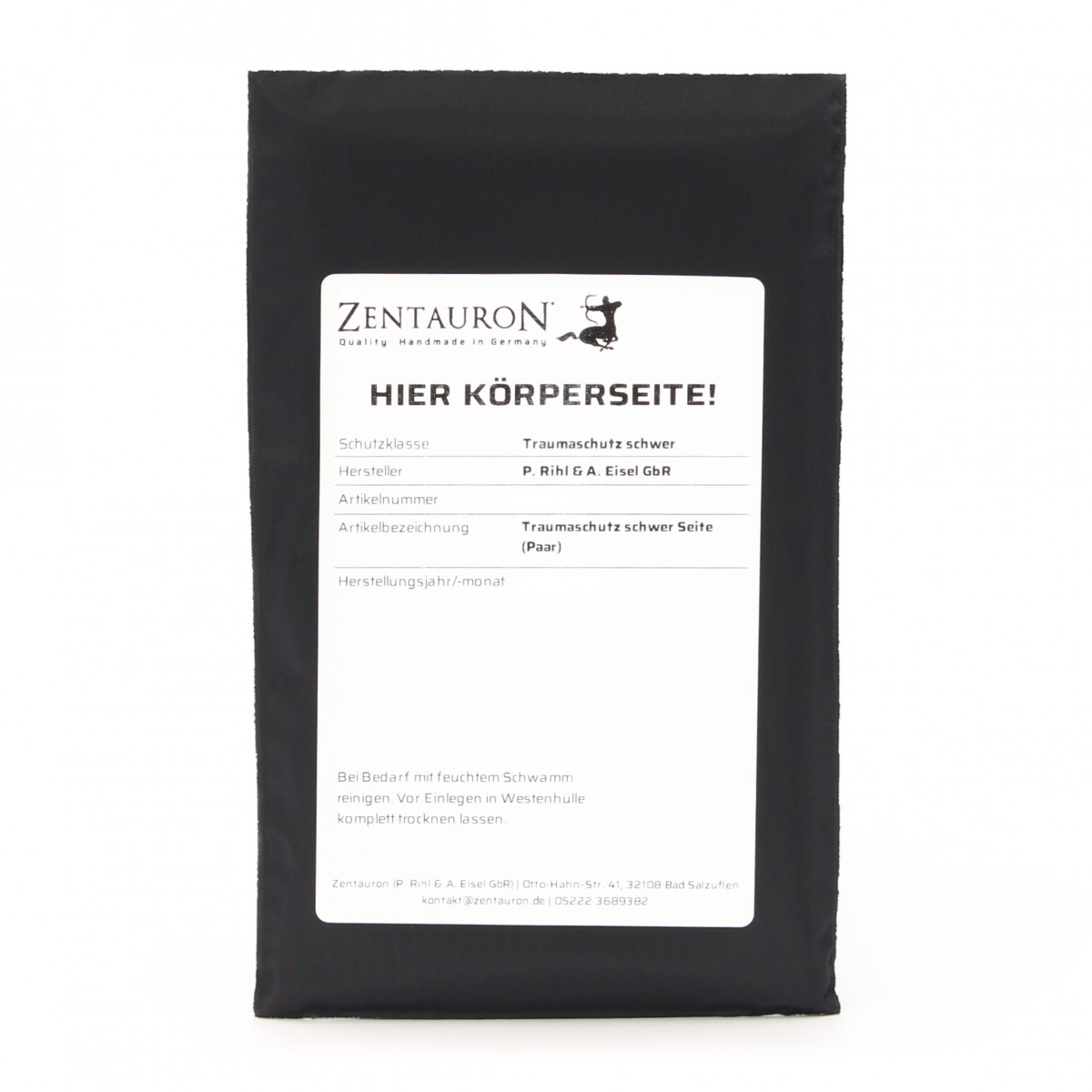

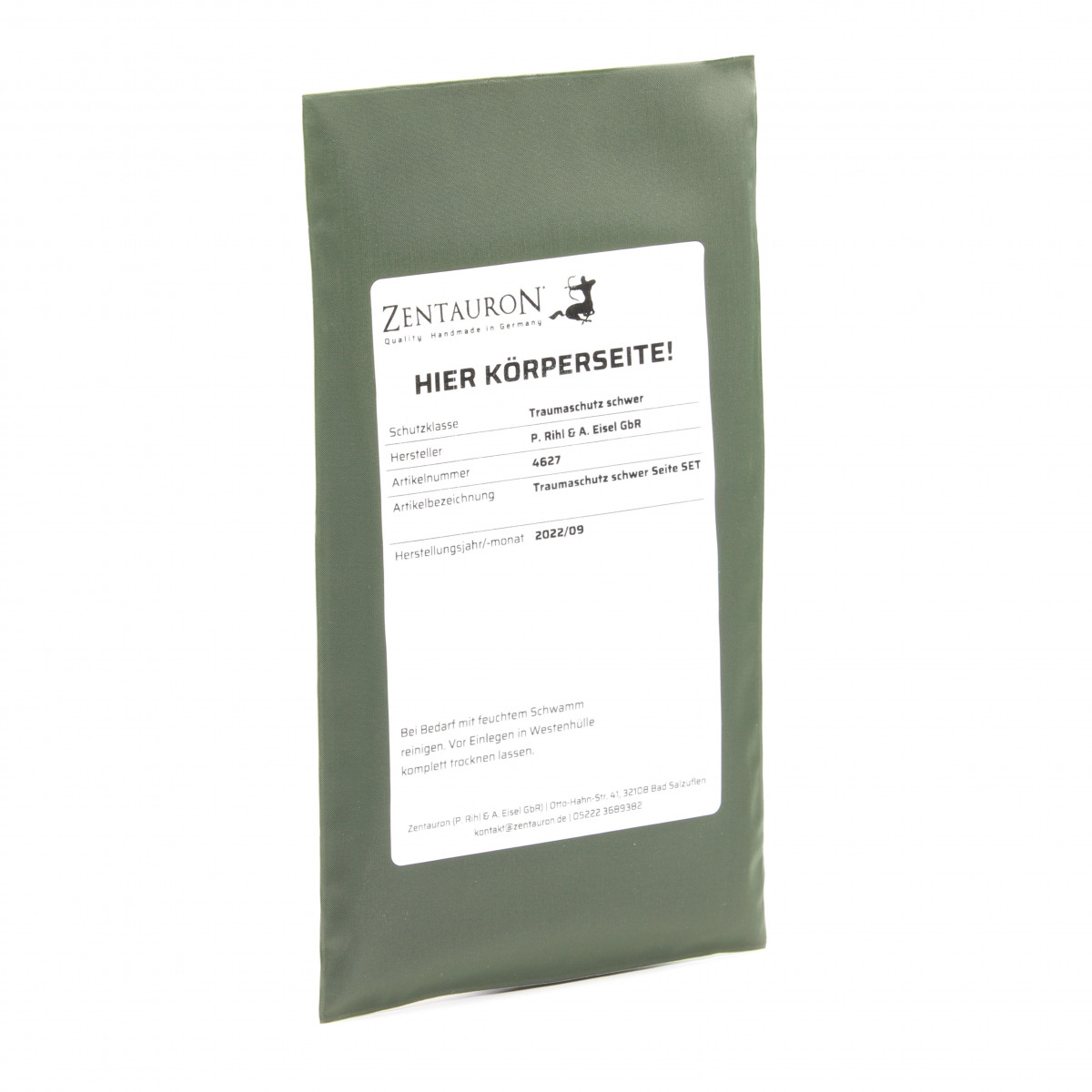

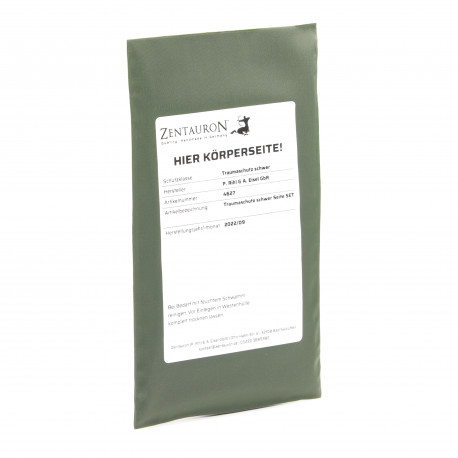

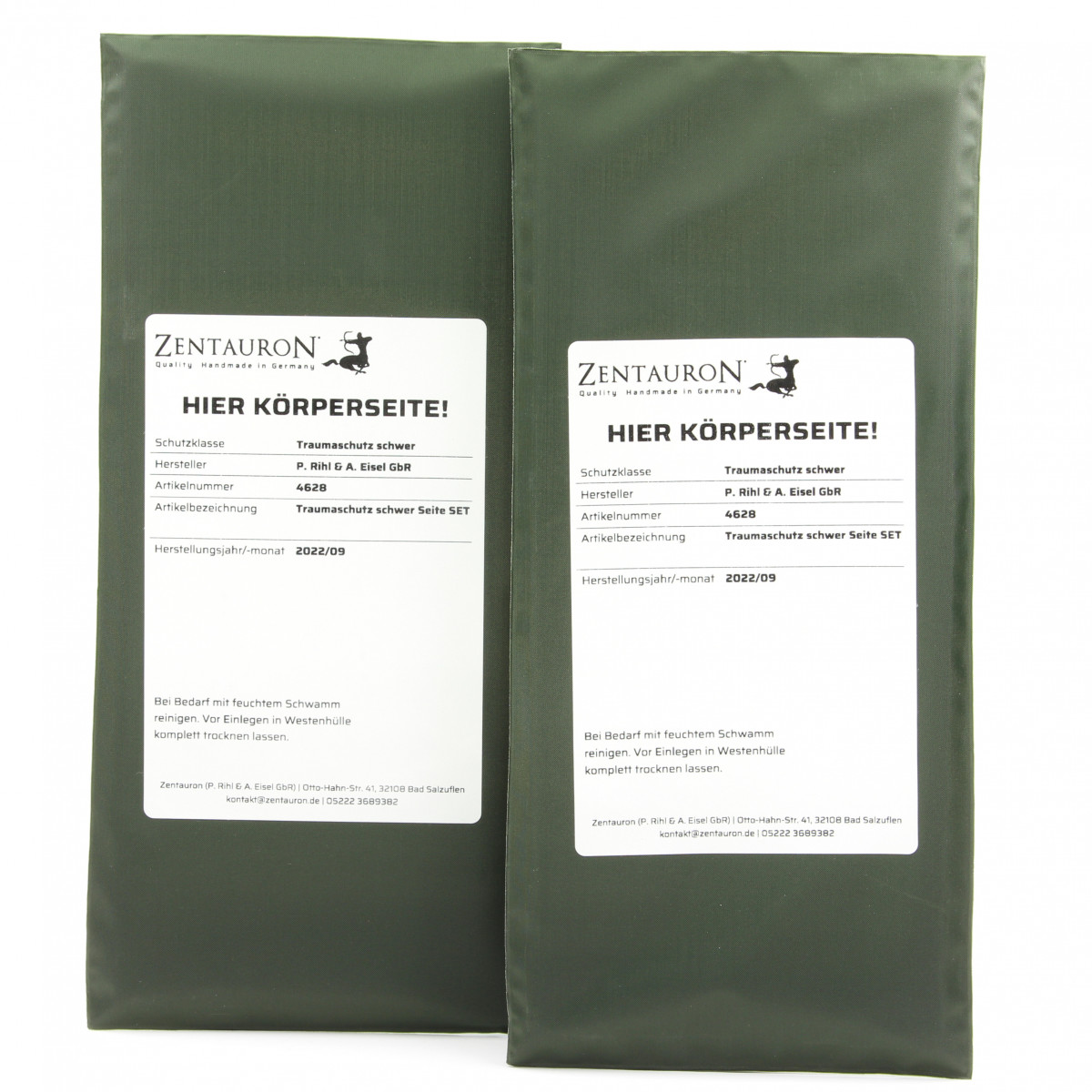

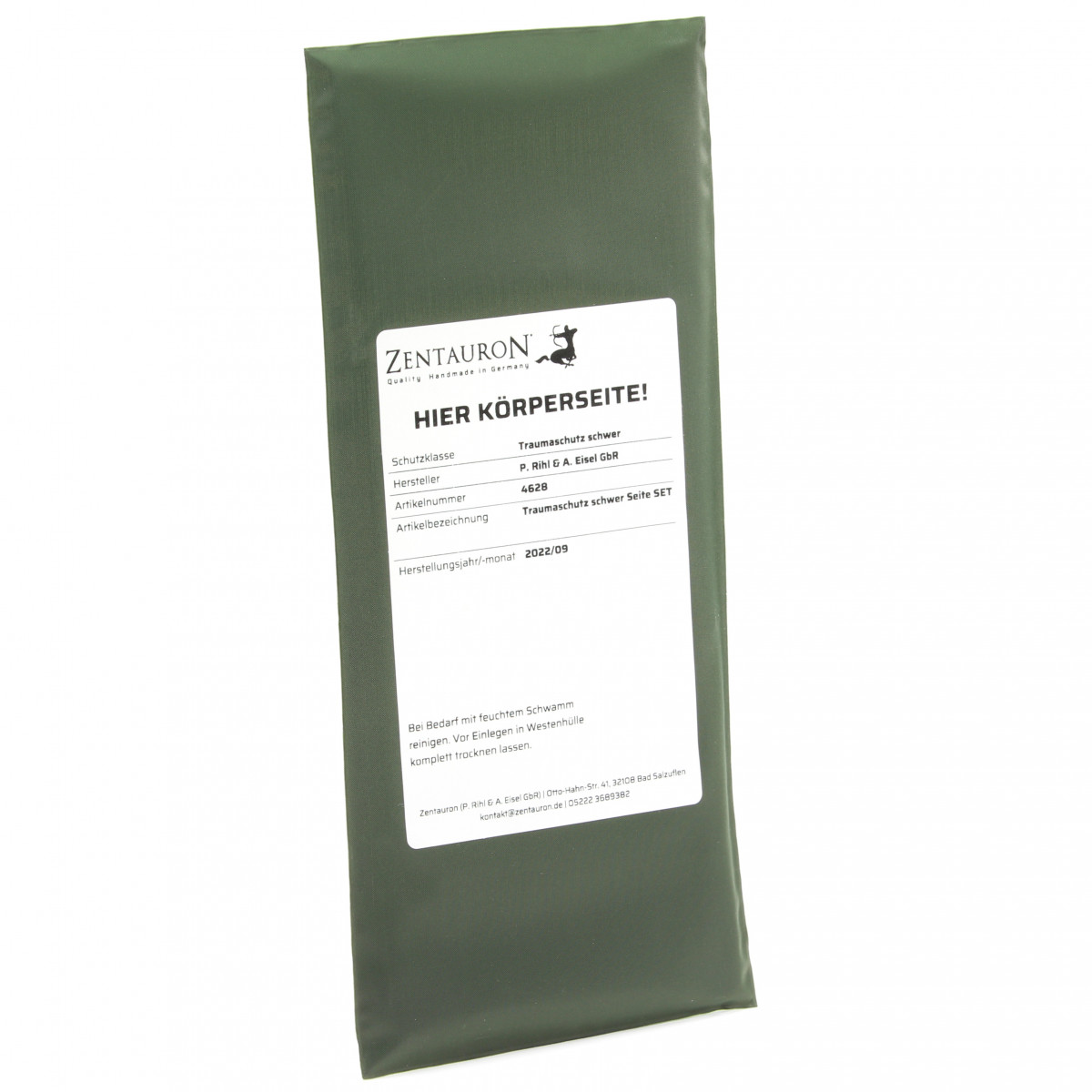

The handling of the insert is very simple. It is inserted together with the soft ballistics into the cummerbund of the plate carrier. It is important that the side with the label "Here body side" also faces your body. The trauma protection must be placed between the body and the ballistic inserts.

The production of these inserts takes place directly at Zentauron in Germany. This insert can be used across manufacturers in different tactical carriers. The following values were achieved under laboratory conditions with the caliber 9mm Luger.

The Zentauron Trauma Protection heavy with soft ballistics VPAM3 Plus side

• Penetration depth without trauma protection heavy in the Plastilin 28 mm
• Penetration depth, with trauma protection heavy into the Plastilin 14 mm

Dimensions (HxWxD) and weight in set

• Size M = 20 cm x 12 cm x 0.8 cm | 108 grams
• Size L = 28 cm x 12 cm x 0.8 cm | 146 grams

Scope of delivery

• Trauma protection heavy side SET
